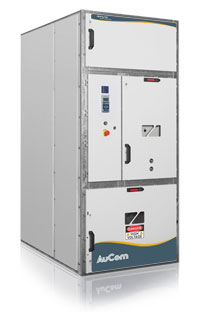

L-Series MVX Type Tested Panel Solution



The L-Series MVX: Key details

Voltage   11 kV
Amps       < 450 A
Loss of service continuity   LSC2B
Rated short time withstand current/peak   Up to 31.5 kA for 4 sec/82 kA
(or up to  40 kA for 3 sec)
Internal arc fault classification   AFLR 31.5 kA for 1 sec
Installation configuration   Standalone or line-up








The smallest soft starter in the world.

The L-Series MVX soft starter is the smallest medium voltage soft-starter in its class, with a smaller panel footprint than any other MV soft starter in the market today. Space is a big advantage in lowering your switchroom costs and provides more flexibility where space is needed like marine applications.

Current range:   Up to 450 A
Motor connection:   Inline
Rated voltage class:     Up to 15 kV
Mains frequency:   45 Hz to 66 Hz


The safest soft starter in the world.

To ensure your staff and plant are safe from arc fault, AuCom L-Series panels are the only choice. The L-Series panel system meets or exceeds all the relevant IEC standards for internal arc fault resistance. L-series MVX panels can even withstand an arc event in one compartment without affecting neighboring compartments. Type tested panels meet Internal arc classification (IAC) AFLR to a maximum of 31.5 ka for 1 second.









Easier to service.

AuCom has eliminated complex disassembly to replace or service a part. The L-series MVX panels are designed with easy rack-in, rack-out operation. Components can be inspected through viewing windows and are easily accessible via hinged doors or removable panels, while still keeping unauthorised people out.

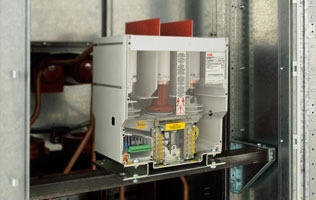

More flexibility.

Don't feel constrained in the choice of apparatus in your switchgear, AuCom panels are compatible with all of the major apparatus suppliers.

The L-Series MVX soft starter is available in a range of configurations up to rated voltage class 15 kVA and 450 A. AuCom has a full service capability to design and manufacture your entire Motor Control Centre.
