L-Series ATS Panel Solution

The L-Series ATS: Key details

Voltage:
2.3 - 13.8 kV
Amps:
< 540 A (standard)
< 1200 A (to order)
Loss of service continuity:
LSC1 (E1 & E2 config.)
LSC2/LSC2B (E3 config.)
Rated short time withstand current/peak:
Up to 40 kA for 1 sec/104 kA
Internal arc fault classification:
AFL 40 kA for 1 sec
Installation configuration:
Standalone or line-up

Meet the L-Series MVE Panel System.

The L-Series panel system is the realisation of a vision that many claimed was impossible. From inception, flexibility has been the primary focus of the L-Series design.

Now, our decades of experience and expertise in design, engineering, manufacturing and after sales service has culminated in the development of this new AuCom global switchgear standard.

The L-Series is the most universal switchgear system on the market today.

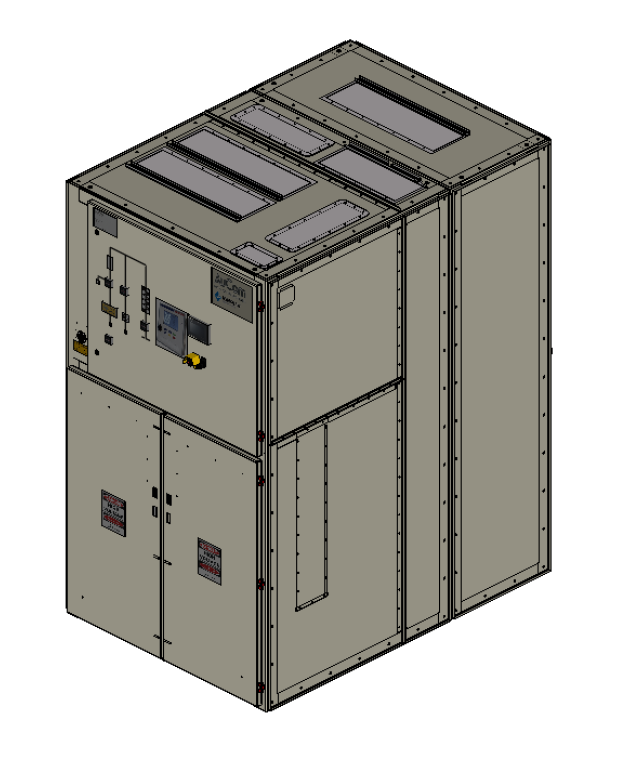

Panel details:

L-Series ATS panels are available in either IP4X or IP54 panels, with options for line and bypass devices, earthing and isolation switches. AuCom can also design and build panels to meet particular specifications, and we offer full application engineering support at all stages of the design process.

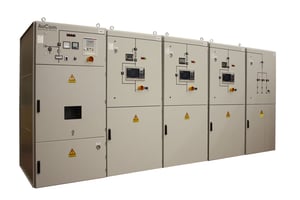

In addition to standard packages we can supply a complete line up to meet your requirements, including the following options:

• Top or bottom cable input (motor & control wires)
• Supply voltage: top, bottom or main busbar system
• Switching devices (line & bypass): vacuum contactor or circuit breaker
• Internal power factor correction with capacitor, vacuum contactor, fuses and inrush current limiter
• Control voltage source: internal via MV control transformer or external via customer terminal blocks
• Earthing/Disconnector: Input, output or main busbas system
