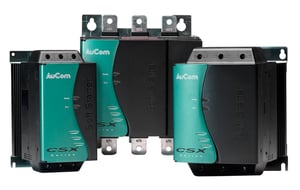

CSX Soft Starter
< 200A
200 - 575V
Soft start pure and simple
The CSX soft starter employs a timed voltage ramp system, which provides you with greater control over soft start and soft stop performance, reducing energy costs and enhancing the efficiency of your motor.
Simple operation features and the built-in bypass function are housed in a compact package, giving a cost-effective solution for stopping and starting control.

Highlights
Compact Design
The CSX is suitable for mounting in a switchboard or motor control centre without the need for an external bypass contactor. At only 165mm deep, it is easy to mount in shallow switchboards.
Energy Savings
CSX is equipped with an internal bypass function to reduce operating costs. CSX starters are 99.5% efficient during run, produce no harmonics, and are the most energy efficient solution for fixed speed applications with variable load.
Simple to Integrate
With features such as dedicated output relays to control the upstream main contactor and power factor correction capacitors, CSX soft starters are easy to integrate into complete motor control solutions.
Economical
The CSX employs a timed voltage ramp system, which provides you with greater control over soft start and soft stop performance, reducing energy costs and enhancing the efficiency of your motor.
Features & Accessories
Starting Functions
- Time voltage ramp
Stopping
- Coast to stop
- Soft stop
Protection
- Power circuit fault
- Supply frequency
- Communications failure
Interface
- Fixed relay output (main contractor relay)
- Programmable relay (trip or run)
- Run relay output
Accessories (Optional)
- Remote operator
- Modbus
- Profibus
- DeviceNet
- PC Software
- Ethernet/IP
- Modbus TCP
- Profinet
Show more
Specifications
Supply
Mains Voltage (L1, L2, L3) | |
CSX-xxx-V4 | 3 x 200 VAC ~ 440 VAC (+ 10% / - 15%) |
CSX-xxx-V6 | 3 x 200 VAC ~ 575 VAC (+ 10% / - 15%) |
Mains frequency (at start) | 45 Hz to 66 Hz |
Rated insulation voltage | 600 VAC |
Form designation | Bypassed semiconductor motor starter form 1 |
Control Voltage (A1, A2, A3) | |
CSX-xxx-xx-C1 | 110-240 VAC (+ 10% / - 15%) or 380-440 VAC (+ 10% / - 15%) |
CSX-xxx-xx-C2 | 24 VAC/VDC (± 20%) |
Environmental
Protection |
|
CSX-007 to CSX-055 | IP20 |
CSX-075 to CSX-110 | IP00 |
Operating temperatures | - 10 °C to + 60 °C |
Humidity | 5% to 95% Relative Humidity |
Pollution degree | Pollution Degree 3 |
Vibration |
IEC 60068 Test Fc Sinusoidal4 Hz to 13.2 Hz: ± 1 mm displacement |
Heat dissipation
During start | 3 watts / ampere |
During run | 10 watts typical |
Inputs
Start (terminal (01) | Normally Open 150 kΩ @ 300 VAC and 5.6 kΩ @ 24 VAC/VDC |
Stop (terminal 02) | Normally Closed 150 kΩ @ 300 VAC and 5.6 kΩ @ 24 VAC/VDC |
Outputs
Main contactor (terminals 13, 14) | Normally Open 6 A, 30 VDC / 6 A, 250 VAC resistive |
Programmable relay (terminals 23, 24) | Normally Open 6 A, 30 VDC / 6 A, 250 VAC resistive |
EMC Emission
Equipment class (EMC) | Class B |
Conducted radio frequency emission |
0.15 MHz to 0.5 MHz: < 56-46 dB (µV) 0.5 MHz to 5 MHz: < 46 dB (µV) 5 MHz to 30 MHz: 50 dB (µV) |
Radiated radio frequency emission | 30 MHz to 230 MHz: < 30 dB (µV/m) 230 MHz to 1000 MHz: < 37 dB (µV/m) |
This product has been designed as Class A equipment. Use of this product in domestic environments may cause radio interference, in which case the user may be required to employ additional mitigation methods. |
EMC Immunity
Electrostatic discharge | 4 kV contact discharge, 8 kV air discharge |
Radio frequency electromagnetic field | 0.15 MHz to 1000 MHz: 140 dB (µV) |
Rated impulse withstand voltage (Fast transients 5/50 ns) | 2 kV line to earth, 1 kV line to line |
Voltage dip and short time interruption | 100 ms (at 40% nominal voltage) |
Harmonics and distortion | IEC61000-2-4 (Class 3), EN/IEC61800-3 |
Approvals
RCM | IEC 60947-4-2 |
CE | EN 60947-4-2 |
CCC | GB 14048.6 |
EAC | TP TC 004/2011, TP TC 020/2011 |
Marine | Lloyds Marine No 1 Specification |
UL / C-UL | UL 508 |
Show more
