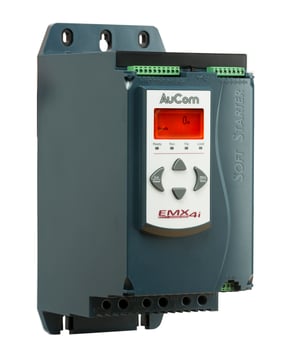

EMX4i Soft Starter
< 1250A
200-690V
Redefining soft starters
EMX4i Soft Starters sets the standard for soft start technology. Not only are they smaller, more powerful and packed with control and protection features, but they also introduce the game-changing Smart Card capability. Fitting a Smart Card to the EMX4 transforms it from super smart motor controller to complete system controller. This is truly a starter for the future.
Highlights
Simple To Use
Smart does not have to mean complex. While the EMX4 offers more functionality than ever before, it has been designed to make your life easier.
Smart Card
The EMX4 Smart Card redefines the role of a soft starter. With the appropriate Smart Card installed the EMX4 is able to operate as an entire system controller.
Energy Efficiency
EMX4i is equipped with an internal bypass function to reduce operating costs. EMX4i starters are 99.5% efficient during run, produce no harmonics, and are the most energy efficient solution for fixed speed applications with variable load.
Mobile App
The AuCom Start Here app puts the tools you need to troubleshoot issues with starting and starter operation in the palm of your hand.
Features & Accessories
Motor Control
- Two motor sets
- Constant current & current ramp start
- Adaptive control starting/stopping
- Kickstart
- Coast to stop and TVR stop
- DC brake
- Soft brake
- Jog (forward and reverse)
- Inside delta (6 wire) control
- Soft trip
- Pump clean
- Reversing contactor control
Integration and Management
- Multi-language graphical display
- I/O and network expansion options
- USB port and data logging
- Voltage measurement
- Analog output
- Emergency run
- SCR fail PowerThrough operation
- Daily on/off scheduling
- Run simulation
Protection
- Motor thermistor
- Current imbalance
- Under/Overcurrent
- Under/Overvoltage
- Under/Overpower
(dry pump protection) - Phase sequence
- Phase loss
- Power loss
- Fail safe relay
- Shunt trip relay
Communications Options
- Modbus RTU
- Profibus
- DeviceNet
- Modbus TCP
- ProfiNET
- Ethernet IP
Smart Card Options
- Pumping Smart Card
Other Accessories
- Remote HMI
Show more
Specifications
General
Current Range | 24 A ~ 1250 A (nominal) |
Motor connection | In-line or inside delta |
Bypass | Integrated internal |
Supply
Mains Voltage (L1, L2, L3) | |
EMX4i-xxxx-V5 | 200 VAC ~ 525 VAC (+ 10%) |
EMX4i-xxxx-V7 | 380 VAC ~ 690 VAC (+ 10%) |
Control Voltage (A1, A2, A3) | |
EMX4i-xxxxX-xx-C1 (A1, A2) | 110 VAC ~ 120 VAC (+10%/-15%), 600 mA |
EMX4i-xxxxX-xx-C1 (A2, A3) | 220 VAC ~ 240 VAC (+10%/-15%), 600 mA |
EMX4i-xxxxX-xx-C2 (A1, A3) | 24 VAC/VDC (± 20%), 2.8 A |
Mains Frequency | 50 Hz to 60 Hz (± 5%) |
Rated insulation voltage to earth | 690 VAC |
Rated impulse withstand voltage | 6 kV |
Form designation | Bypassed or continuous, semiconductor motor starter form 1 |
Short Circuit Capability
Coordination with semiconductor fuses | Type 2 |
Coordination with HRC fuses | Type 1 |
Electromagnetic Capability
(Compliant with EU Directive 2004/108/EC) |
|
EMC Immunity | IEC 60947-4-2 |
EMC Emissions | IEC 60947-4-2 Class B |
Heat dissipation
During start | 4.5 watts per ampere |
During run | |
EMX4i-0024B ~ EMX4i-0052B | ≤ 35 watts approx. |
EMX4i-0064B ~ EMX4i-0135B | ≤ 50 watts approx |
EMX4i-0184B ~ EMX4i-0250B | ≤ 120 watts approx. |
EMX4i-0352B ~ EMX4i-0580B | ≤ 140 watts approx. |
EMX4i-0835B ~ EMX4i-1250B | ≤ 180 watts approx. |
EMX4i-0190C~ EMX4i-1220C | 4.5 watts per ampere |
Inputs
Input rating | Active 24 VDC, 8 mA approx. |
Motor thermistor (B4, B5) | Trip >3.6kΩ, reset <1.6kΩ |
Outputs
Relay outputs | 10 A @ 250 VAC resistive, 5 A @ 250 VAC, AC15 pf 0.3 |
Main contactor (33, 34) | Normally open |
Relay output A (41, 42, 43) | Changeover |
Relay output B (53, 54) | Normally Open |
Analog output (21, 22) | |
Maximum load | 600Ω (12 VDC @ 20 mA) |
Accuracy | ± 5% |
Environmental
Operating temperature | -10 °C ~ 60 °C, above 40 °C with derating |
Operating altitude | 0 - 1000 m, above 1000 m with derating |
Storage temperature | -25 °C ~ 60 °C |
Humidity | 5% to 95% Relative Humidity |
Pollution degree | Pollution Degree 3 |
Vibration | IEC 60068-2-6 |
Protection | |
EMX4i-0024B ~ EMX4i-0135B | IP20 |
EMX4i-0184B ~ EMX4i-1250B | IP00 |
EMX4i-0190C ~ EMX4i-1220C | IP00 |
Certification
CCC | GB 14048.6 |
CE | EN 60947-4-2 |
C-UL | C22.2 No. 60947-4-2 |
UL | 60947-4-2 |
Marine | |
Lloyds | Lloyds Marine No 1 Specification |
ABS | Steel Vessel Rules 2010 |
RCM |
IEC 60947-4-2
|
