AFE VFD (Active Front End)

Power 1 1  55 - 4000kW    Volts 1 1  380-690V

Multi-purpose Low-Voltage VFDs

The AuCom Active Front End (AFE) family is designed to meet the diverse needs of modern industrial applications, offering low harmonic (LV-LH) and regenerative (LV-RG) options that ensure optimal performance and efficiency. These robust, IGBT-based supply rectifiers are engineered for durability and flexibility, making them an excellent choice for a variety of network configurations. Available in both air-cooled and liquid-cooled designs, the AFE VFDs cater to power requirements ranging from 55 to 4000 kW and voltages between 380 and 690 V. With their advanced technology, the AuCom AFE VFDs minimize harmonic distortion and enhance energy recovery, ultimately leading to improved system performance and reduced operating costs.

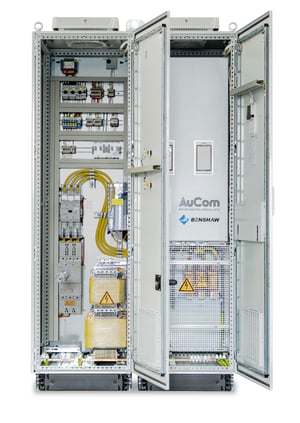

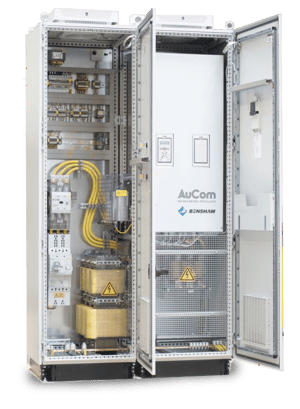

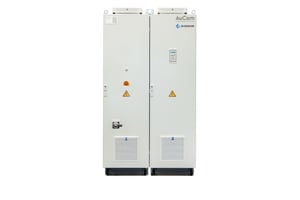

AFE Drive

Highlights

Certification Icon-01
Complete and Certified Solutions

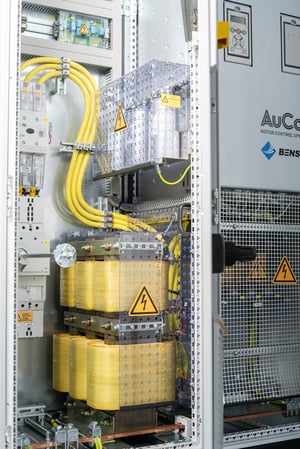

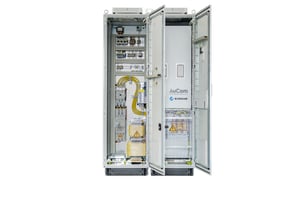

AuCom AFE Drives are supplied as all-in-one solutions, including a robust IP54 classified
cabinet, IGBT power modules, LCL filter, circuit breaker, main contactor, charging circuit,
EMC filter and output choke. AuCom‘s full range of liquid cooled AFEs have DNV marine
approval.
Operation Icon
Trouble-Free Operation

AuCom AFE Drives leverage advanced technology to minimize harmonic distortion, reducing power losses and enhancing power factor to optimize transformer sizing and lower electricity transmission costs. They also compensate for reactive power and resist disruptions from voltage dips or harmonics caused by other equipment. The voltage boost feature ensures full motor power, even during mains fluctuations.

Modular Icon

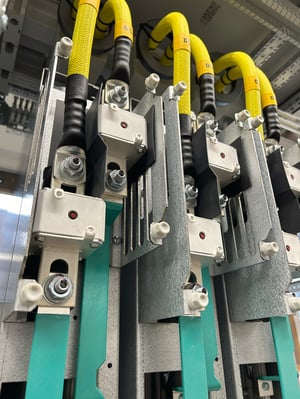

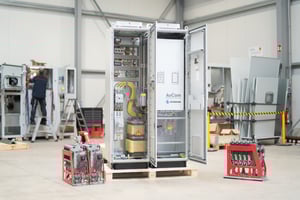

PEBB Modular System

The AuCom AFE features a modular Power Electronic Building Block (PEBB) design, with each PEBB acting as an independent line or motor inverter connected to a shared control board. This structure provides redundancy, scalability, and ease of service. The AFE’s electrical and mechanical design also allows for straightforward, user-friendly installation.

Features & Accessories

Features

  • STO (Safe Torque Off) Function: Safety feature to prevent unintended movement
  • User-Friendly Operation: Supports multiple languages
  • PEBB Power Module: 100% interchangeable, self-monitored, ensuring high reliability
  • Dual Rating
    • Normal Duty: 120% Overload for 1 minute every 10 minutes
    • 150% OL: Suitable for demanding applications
  • Seamless integration: Compatible with existing shutdown chains

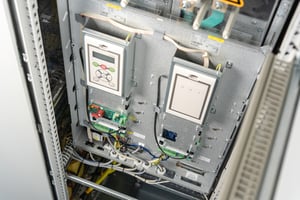

  • Display with Keypad:
    • Front-mounted for quick and easy programming
    • Enables monitoring of operational status



Protection Functions

  • Overvoltage
  • Overcurrent
  • Motor I²t
  • PTC
  • Motor PTC
  • PT100
  • Motor Rotor blocked
  • External error
  • Monitor Alarm Max/Min
  • Communication error
  • Encoder board
  • Pump monitoring
  • Overtemperature
  • Power error
  • DC link monitoring
  • Safe stop
  • Brake
  • Monitoring of installed options
  • Internal error
  • Mains asymmetry

Communication

  • DeviceNet
  • Modbus / TCP
  • Profibus
  • Profinet IO
  • EtherNet IP
  • EtherCAT
  • CANopen



Accessories

  • Encoder
  • PTC / PT100
  • Extended IO
  • Safe Torque Off (STO)
  • Wireless Communication (WiFi or Bluetooth)

12-Pulse solution on request



Languages

  • German
  • English
  • Swedish
  • French
  • Spanish
  • Italian
  • Russian
  • Chinese
  • Dutch
  • Czech
  • Turkish
  • Polish
Show more

Specifications

General Electrical Specifications

GENERAL (VALID FOR BOTH LIQUID COOLED AND AIR COOLED VERSIONS)

Mains voltage

380–460 V +10 % / -15 %

(LV-LH-400 V / LV-RG-400 V)

480–690 V +6 % / -15 %

(LV-LH-690 V / LV-RG-690 V)

Mains frequency

48 to 52 Hz and 58 to 62 Hz

Input total power factor

1.0

Output AC voltage

(0–1.2) * Mains supply voltage

(LV-LH / LV-RG-400 V / -690 V)

Output frequency

0–599 Hz

(LV-LH / LV-RG-400 V / -690 V)

Switching frequency

3 kHz (adjustable 1.5–6 kHz (max=8 kHz @ Fnmot > 400 Hz),
LV-LHD only)

(LV-LH / LV-RG-400 V / -690 V)

Efficiency at nominal load

98 % (LV-RGG-690 V)

97 % (LV-LH / LV-RG-400 V / -690 V)

Harmonics to supply, THDI

< 5 %

All units assembled in an IP54 cabinet including circuit breaker + main contactor or LCL filter, charging unit, and output chokes.


Environmental conditions
Operation

Parameter

Normal Operation

Nominal ambient temperature

0 deg C–40 deg C (Air cooled) / 0 deg C–45 deg C (Liquid cooled)
For operation at higher temperatures, see below.
Atmospheric pressure 86-106 kPa
Relative humidity, non-condensing 5-95 %

Contamination, according to IEC
60721-3-3

No electrically conductive dust allowed.
Cooling air must be clean and free from corrosive materials.
Chemical gases, class 3C2 (Coated boards 3C3). Solid particles, class 3S2.

Vibrations

According to IEC 60068-2-6, Sinusodial vibrations: 10 < f < 57 Hz, 0.075 mm
57 < f < 150 Hz, 1g

Altitude

0–1,000 m,
460 V AFE units, with derating 1 % / 100 m of rated current up to 4,000 m.
Coated boards recommended > 2,000 m.
690 V AFE units, with derating 1 % / 100 m of rated current up to 2,000 m.


Storage

 Parameter

 Storage

Temperature

-20 to +60 °C

Atmospheric pressure

86–106 kPa

Relative humidity, non-condensing

0–90 %



Operation at higher temperatures

All AuCom AFE units are made for operation at maximum of 40 / 45 deg C ambient temperature.
However it is possible to use the AFE units at higher temperatures with some loss in performance, using derating.
Derating Liquid cooled AFE: -1 % per degree Celsius. Maximum is +10 deg C (55 deg C).
Derating Air cooled AFE: -2.5 % per degree Celsius. Maximum is +5 deg C (45 deg C).

Basic I/O Data

CONTROL SIGNAL INPUTS - ANALOGUE (DIFFERENTIAL), 4 CHANNELS

Analogue Voltage / current

0-±10 V / 0-20 mA via switch
Max. input voltage +30 V / 30 mA
Input impedance 20 kΩ (voltage) / 250 Ω(current)

Resolution

11 bits + sign

Hardware accuracy

1 % type + 1 ½ LSB (Least Significant Bit) fsd (full scale deflection)

Non-linearity 1½ LSB



CONTROL SIGNAL INPUTS - DIGITAL, 8 CHANNELS

Input voltage

High: > 9 V DC, Low: < 4 V DC
Max. input voltage +30 V DC
Input impedance < 3.3 V DC: 4.7 kΩ / ≥ 3.3 V DC: 3.6 kΩ

Signal delay

≤ 8 ms



CONTROL SIGNAL OUTPUTS - ANALOGUE, 2 CHANNELS

Output voltage / current

0–10 V / 0–20 mA via parameter setting
Max. input voltage +15 V @5 mA cont.
Short-circuit current (∞) +15 mA (voltage), +140 mA (current)

Output impedance

10 Ω (voltage)

Resolution

10 bit

Maximum load impedance for
current Hardware accuracy

500 Ω

Hardware accuracy

1.9 % of full scale deflection (voltage), 2.4 % of full scale deflection (current)

Offset

3 LSB

Non-linearity

2 LSB



CONTROL SIGNAL OUTPUTS - DIGITAL, 2 CHANNELS

Output voltage

High: > 20 V DC @50 mA, > 23 V DC open
Low: < 1 V DC @50 mA
Short-circuit current (∞) 100 mA max (together with +24 V DC)



RELAY, 3 PCS

Contacts

0.1–2 A / Umax 250 V AC or 42 V DC



REFERENCE VOLTAGES

+10 V DC

+10 V DC @10 mA Short-circuit current +30 mA max
-10 V DC -10 V DC @10 mA
+24 V DC +24 V DC Short-circuit current +100 mA max (together with Digital Outputs)
