X-Series High Safety MV Panel
<2500A
2.3 - 15kV
E-X-tremely Safe

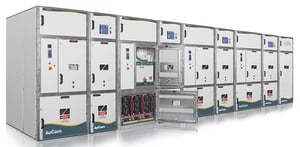

The X-Series MV Panel System offers the highest levels of personal safety and operational continuity. Suitable for power distribution, protection and/or fixed speed motor control, X-Series panels can be deployed in either standalone or lineup configurations.
Arc Fault Rated, Remote Controllable Racking, Lockable Shutters, Door & Tag out locks, Segregated compartments, Earth Switch, SF6 free.
LSC 2A classification combined with triple segmented compartment design contains failures and allows service of individual cells without disruption of the rest of the system.
A slimline 650mm width engineered to maximise utilisation of switch room floor space.
A range of options to suit your requirement including, Incomers, Feeders, Bus couplers, Bus risers, PFC, DOL Starters, Soft Start.

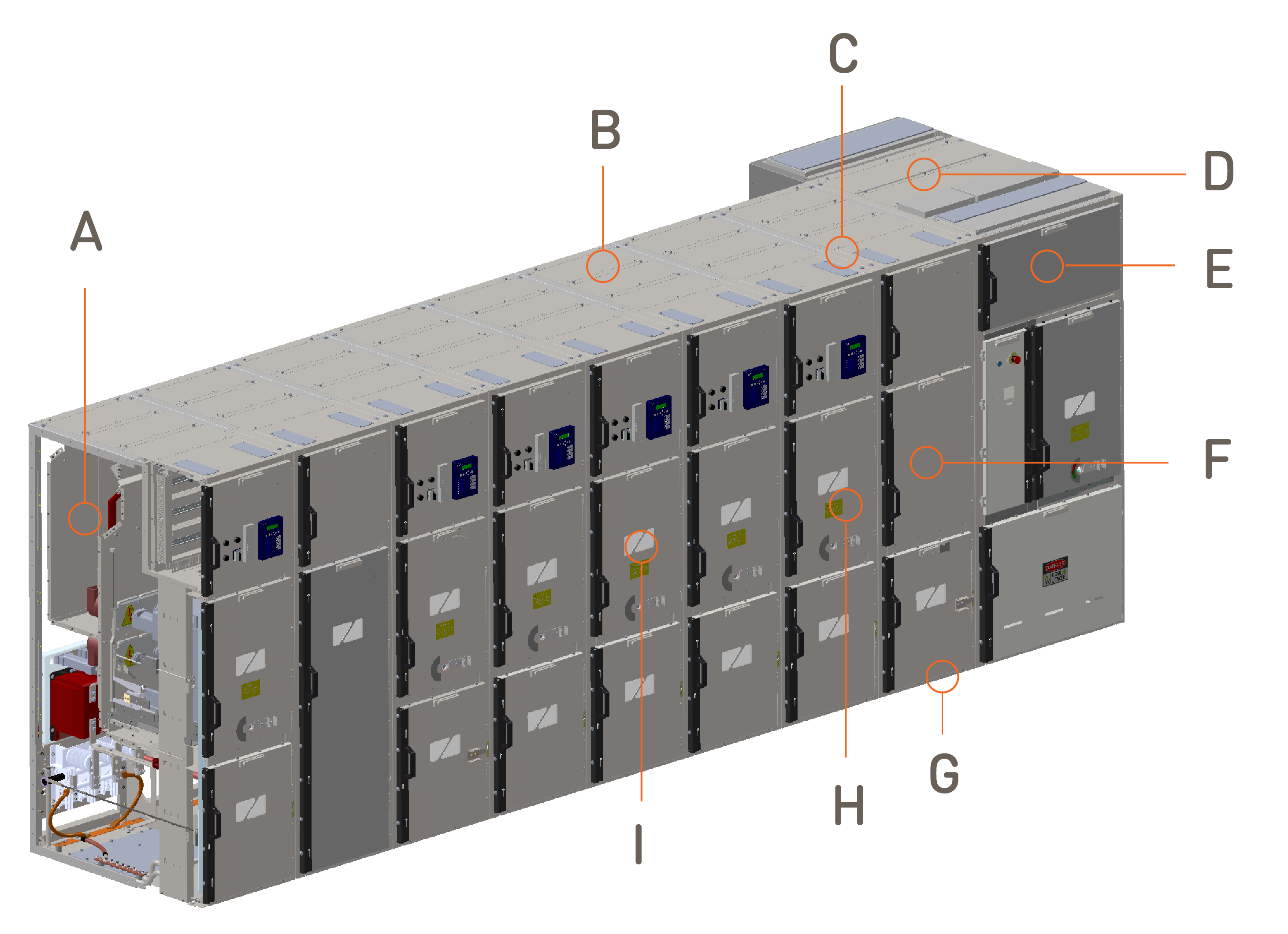

Features & Accessories
| A | Busbars - Air isolated, Tinned Copper, Short Circuit Rating 31.5/4 sec |
| B | Arc Blast Flap - 1 for each chamber |
| C | LV Cable Connection |
| D | Integrate Soft Starter & Drives on common bus |
| E | Safe LV Compartment - Arc Flash |
| F | Main Switching device - Manual or automatic control racking |
| G | Compact Width - 650mm to 1000mm |
| H | Hinged Door Panels - Mechanical interlocks, Two step door locking |
| I | Viewing Window |
