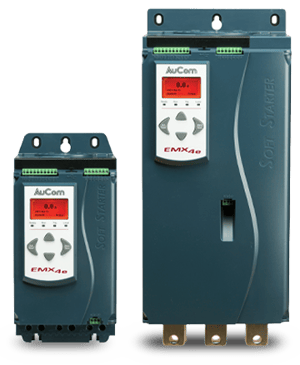

EMX4e Soft Starter

Amps 1 1  < 580A    Volts 1 1  200-600V

Economic yet powerful

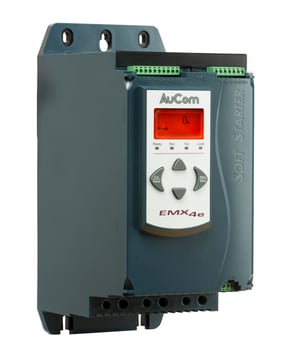

The smaller brother of the EMX4i, this unit packs a powerful punch, delivering all the essential features of an advanced soft starter for motors up to 580A.

EMX4e

Highlights

Simple To Use
Smart does not have to mean complex. While the EMX4 offers more functionality than ever before, it has been designed to make your life easier.
Smart Card

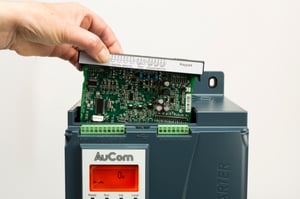

The EMX4 Smart Card redefines the role of a soft starter. With the appropriate Smart Card installed the EMX4 is able to operate as an entire system controller.
Energy Efficiency
EMX4e is equipped with an internal bypass function to reduce operating costs. EMX4e starters are 99.5% efficient during run, produce no harmonics, and are the most energy efficient solution for fixed speed applications with variable load.
phone-icon
Mobile App
The AuCom Start Here app puts the tools you need to troubleshoot issues with starting and starter operation in the palm of your hand.

Features & Accessories

Motor Control

  • One motor set
  • Constant current & current ramp start
  • Adaptive control starting/stopping
  • Coast to stop and TVR stop
  • Soft trip



Protection

  • Motor thermistor
  • Current imbalance
  • Under/Overcurrent
  • Phase sequence
  • Phase loss
  • Power loss
  • Fail safe relay
  • Shunt trip relay



Integration and Management

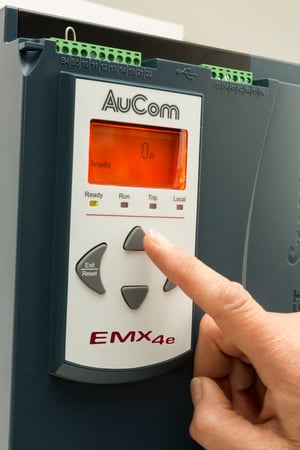

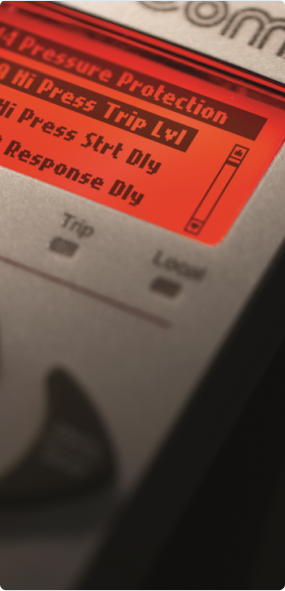

  • Multi-language graphical display
  • I/O and network expansion options
  • USB port and data logging
  • Analog output
  • Emergency run
  • Run simulation

Communications Options

  • Modbus RTU
  • Profibus
  • DeviceNet
  • Modbus TCP
  • ProfiNET
  • Ethernet IP

Smart Card Options

  • Pumping Smart Card

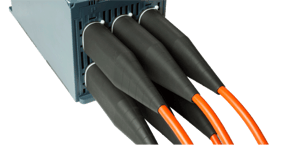

Other Accessories

  • Remote HMI
Show more

Specifications

General
Current Range 24 A ~ 580 A (nominal)
Motor connection In-line
Bypass Integrated internal

Supply
 Mains Voltage (L1, L2, L3)
EMX4e-xxxx-V5 200 VAC ~ 525 VAC (+ 10%)
EMX4e-xxxx-V7 380 VAC ~ 600 VAC (+ 10%)
Control Voltage (A1, A2, A3)
EMX4e-xxxxB-xx-C1 (A1, A2) 110 VAC ~ 120 VAC (+10%/-15%), 600 mA
EMX4e-xxxxB-xx-C1 (A2, A3) 220 VAC ~ 240 VAC (+10%/-15%), 600 mA
EMX4e-xxxxB-xx-C2 (A1, A3) 24 VAC/VDC (± 20%), 2.8 A
Mains Frequency 50 Hz to 60 Hz (± 5%)
Rated insulation voltage to earth 600 VAC
Rated impulse withstand voltage 6 kV
Form designation Bypassed or continuous, semiconductor motor starter form 1

Short Circuit Capability
Coordination with semiconductor fuses Type 2
Coordination with HRC fuses Type 1

Electromagnetic Capability
(Compliant with EU Directive 2004/108/EC)
EMC Immunity IEC 60947-4-2
EMC Emissions IEC 60947-4-2 Class B

Heat dissipation
During start 4.5 watts per ampere
During run
EMX4e-0024B ~ EMX4e-0052B ≤ 35 watts approx.
EMX4e-0064B ~ EMX4e-0135B ≤ 50 watts approx.
EMX4e-0184B ~ EMX4e-0250B ≤ 120 watts approx.
EMX4e-0352B ~ EMX4e-0580B ≤ 140 watts approx.

Inputs
Input rating  Active 24 VDC, 8 mA approx.
Motor thermistor (B4, B5) Trip >3.6kΩ, reset <1.6kΩ

Outputs
Relay outputs  10 A @ 250 VAC resistive, 5 A @ 250 VAC, AC15 pf 0.3
Main contactor (33, 34) Normally open
Relay output A (41, 42, 43) Changeover
Relay output B (53, 54) Normally Open
Analog output (21, 22)
  Maximum load 600Ω (12 VDC @ 20 mA)
  Accuracy  ± 5%

Environmental
Operating temperature -10 °C ~ 60 °C, above 40 °C with derating
Operating altitude 0 - 1000 m, above 1000 m with derating
Storage temperature -25 °C ~ 60 °C
Humidity  5% to 95% Relative Humidity
Pollution degree Pollution Degree 3
Vibration IEC 60068-2-6
Protection
EMX4e-0024B ~ EMX4e-0135B IP20
EMX4e-0184B ~ EMX4e-0580B  IP00

Certification
CCC GB 14048.6
CE EN 60947-4-2
C-UL C22.2 No. 60947-4-2
UL 60947-4-2
Marine
Lloyds Lloyds Marine No 1 Specification
ABS Steel Vessel Rules 2010
RCM

 IEC 60947-4-2
