M-MVE Soft Starter

Amps 1 1  < 540A    Volts 1 1  2.3 - 7.2kV

Medium Voltage Starting Essentials

M-MVE Soft Starters are an integrated solution for motor control and protection. Advanced soft start and soft stop functions and an extensive motor and system protection are easily implemented via a user-friendly interface and complete commissioning diagnostics.

Housed in an IEC style enclosure M-MVE starters are compact with a small footprint making them ideal for space constrained installs. Available in both single and lineup configurations.

Enquire Now

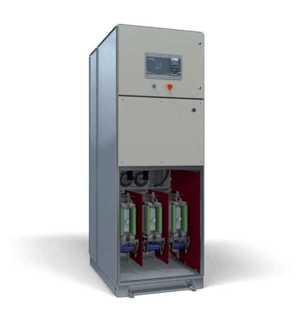

M-Series Hero-01

Highlights

reduced costs icon
Economic

All the essential features and functions in an economic package.
compact size icon-01
Compact
M-MVE starters are compact with a small footprint making them ideal for space constrained installs.
Parameter Control Icon
Highly Configurable

Switchgear options to suit your site including, Line and bypass breakers, isolation, and earthing switches.
Multi-Drive-01
Standalone or Lineups

A range of options to suit your situation.

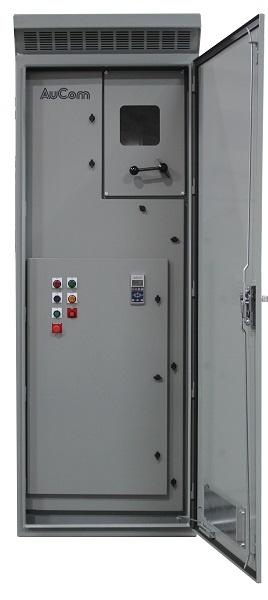

M-Series Panel Features

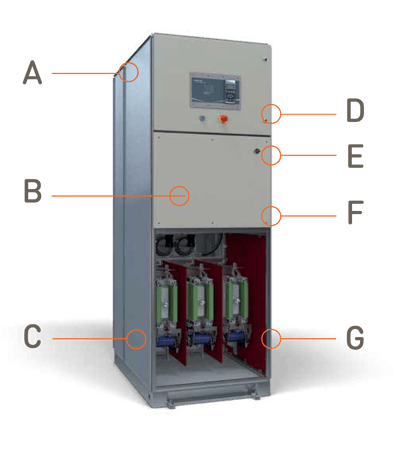

M-Series Callouts-01



 A Top or bottom cable input and control wiring
 B Front and rear panel access available
 C Corrosion resistant hot-dip galvanised steel sheets
 D Safe operation with separate galvanically isolated low voltage section via IBT technology
 E IEC style panel

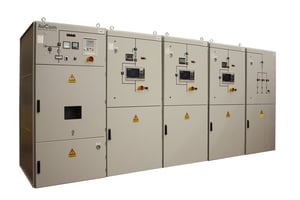

 F Available in both stand-alone and line-up configuration
 G A range of switching options (vacuum contactor or vacuum circuit breaker)
 I Viewing Window

M-Series Panel Specifications

  • Rated voltage: 3.6 kV - 12 kV
  • Rated busbar current: up to 630 A
  • Rated short time withstand current/peak: up to 31.5 kA for 1 seconds/ up to 82 KA
  • Partition classification: Pl



  • Loss of service continuity: LSC1/LSC2
  • IP4X protection rating (IP54 optional)
  • Altitude: < 1000 m (higher with derating)
  • Ambient temperature: -10 °C to 60 °C (above 50 °C with derating]
  • Colour painting: RAL7032 (other colours optional)

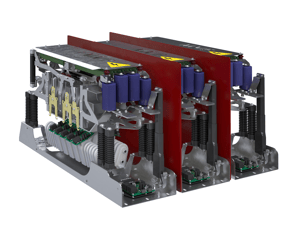

MVE Soft Starter Features

Medium voltage installations are complex enough without making the starter hard to use as well. MVE is packed with features designed to make your life easier, including real-language feedback messages, so you don't have to look up codes to know what's happening.

Built-in monitoring and indicators, and extensive on-board input and output functionality reduce the need for space and avoid the cost of auxiliary equipment, while simplifying installation. Real-time graphs of motor operating performance and current quickly and clearly illustrate exactly how your motor is performing. No fuss, no trouble - a smoother start in every sense.

The MVE controller features simple, plain language feedback on the soft starter's operation and events - no need for trip code look-ups.

HMI Features
Feature Benefit
Quick Application Setup Easy commissioning
Dual Motor Set Allows for two different starting and stopping motor data sets
Starting and Stopping Options A range of starting methods including current based torque control make the MVE soft starter suitable for all applications
Simulation Mode Fast and easy testing during installation and commissioning without the need for a mains supply or motor

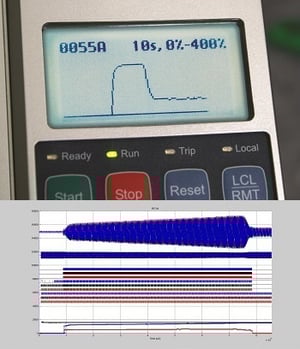

Real-time Performance Graph Real-time graphs of motor performance and current quickly and clearly illustrate how your motor is performing
Diagnostic Tool Recorded waveforms can help diagnose conditions interfering with operation
LV/MV Isolation via IBT Technology AuCom IBT Interface Board Technology isolates the core starter control system and HMI from the MV power section, creating a safer work environment
LV Motor Test Conduct factory testing without the need for a medium voltage motor or supply
Secondary Injection Testing Allows full testing of motor protections via an external system such as Omicron
Complete Motor Protection A wide range of protection features including ground fault protection ensure that your equipment can operate safely even in the most demanding environments
DOL+ Mode Protects your motor even while operating in bypass mode
Advanced Thermal Modelling Intelligent thermal modelling allows the soft starter to dynamically calculate motor temperature and determine whether the motor can start successfully



Show more

Protection Functionality

Description Built-in Protection Eq. ASI Code
Maximum start time Excess start time 48
Too many starts Restart delay and dynamic thermal model 66
Undercurrent Undercurrent 37
Overcurrent - jam (Locked rotor, load increase) Instantaneous/time-delay overcurrent 50/51/51R
Overcurrent - short (short circuit) Instantaneous/time-delay overcurrent (stage 2) 50/51
Checking or interlocking relay ` Shorted SCR 3
Thermal overload Thermal overload - dynamic model 49/51
Current imbalance Current imbalance 46
Undervoltage Undervoltage 27
Overvoltage Overvoltage 59
Phase loss Phase loss 47
Power loss Power loss 32
Ground fault Ground fault  50G
Mains frequency Frequency check, frequency variation 81
External communications failure Communications failure 85
Internal communications failure Internal failure 85
Ext. fault 1/code-1 Auxiliary trip A 94/95
Ext. fault 2/code-2 Auxiliary trip B 94//95
Motor overtemperature Thermistor protection* 23
Stator winding overtemperature Thermistor protection* 49
