MVH2.0 VFD

Not different, just better

The MVH2.0 from AuCom combines all the essential features of a smart medium-voltage drive, from simple configuration to intelligent data analysis, even in the most demanding industrial applications. Thanks to Multilevel Cascaded H-Bridge technology, the MVH2.0 ensures a significant increase in both productivity and energy efficiency. A frequency drive that truly makes a difference. That’s AuCom: not different, just better!

Enquire Now

Wide range of applications

Power rating	210 - 25,000 kW
Voltage range	2.3 - 13.8 kV
Enclosure options	Compact design, Single Side Access, Double Side Access, Stand Alone and Line Up Solutions, Container Solutions for Outdoor
Cooling options	Air forced, Water cooled, Hybrid solution (air forced and water cooled)
Supported motors	Synchronous, asynchronous, permanent magnet

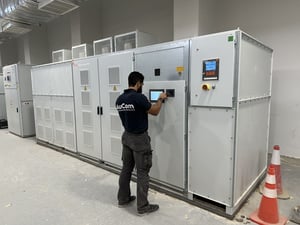

Convenient monitoring via HMI

Our MVH2.0 medium voltage drive includes high-definition HMI and a range of monitoring functions for powerful control:

10 inch touch screen with HD display, high data throughput and user-friendly interface
Multi-language support
Control system status and monitoring
Data logging, diagnostics and system information

Monitoring via the cloud

When the MVH2.0 is connected to the server based monitoring platform by wireless or wired network, remote devices can access real time data to monitor the status of the system.

Using this remote service users can analyse parameters, identify problems and diagnose product faults while off-site. A panoramic camera and voice system assists maintenance and servicing as users can instruct on-site technicians from remote a remote location.

Increased Productivity

Wide power range from 210 kW to 25,000 kW and 2.3 kV to 13.8 kV for use in all conceivable industrial applications
Precise and intuitive control settings via the 10.2" TFT LCD touch screen for optimal motor utilization
Easy monitoring of all power inputs and factors
Cloud-based access for real-time data analysis

Reduced Costs

Pre-installed standard functionalities cover numerous industrial applications
Easy scalability for all required voltage and output powers
Parallel control of multiple motors (up to 4 different motor parameters can be added)
Compact design reduces space requirements
Optimal protection against harmonics and voltage loads extends motor operating life and increases system throughput
Low harmonic technology allows the existing motor to remain unchanged, even when adding the MVH2.0 for control.

Advanced Control

For synchronous, asynchronous and permanent magnet motors
Air- or water-cooled control cabinets
Numerous intelligent features like:
- Torque amplification
- Flying/Speed Start
- Auto-Start on release
- Synchronous switching
- Primary-Secondary control

Features & Accessories

Motor Control

Induction motors
- Advanced V/F Control
- Vector control
- Sensorless vector control
Synchronous motors
- Vector control
- Sensorless vector control

Torque boost
Flying start
Auto-start on trip
Synchronous transfer switching
Primary-secondary control

Integration and Management

10.2” TFT LCD touchscreen
Password protection
Parameter download & upload
Fault recording

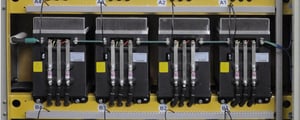

Power cell status monitoring
Excitation monitoring

Protection Functions

Overcurrent protection
Overvoltage protection
Overheating protection
Current limiting protection
Control power failure protection
Unbalanced output protection
Output short to ground protection
Input imbalance protection
Fan power failure protection
Analog disconnection protection
Controller offline
Excitation failure
Transformer, power cell and cabinet over-temperature trip protection
Transformer and cabinet over-temperature alarms
Fan alarm
Transformer cabinet door alarm
Power cell bypass alarm
Power cell cabinet door alarm

Specifications

VFD Rated power	210 – 25, 000 kVA
Rated voltage	2.3 – 13.8kV (-15% - +10%)
Rated frequency	50 Hz / 60 Hz (-10% – +10%)
Modulation technique	SVPWM
Control power	400 V, ≤30 kVA (dependent on power level)
Input power factor	>0.96
Efficiency	>96% (>98% for Power Electronic Part)
Output frequency range	0 Hz – 120 Hz
Frequency resolution	0.01 Hz / 0 .002 Hz
Instantaneous over-current protection	150% protect immediately
Overload capability	120% for 60 sec
Current limited protection	10%-150% (1 000 ms – 3 s inverse time protection)
Analog input	3 × AI with 4 – 20mA / 2 – 10V
Analog output	4 × AO with 4 – 20mA

Host communication	Modbus RTU - Standard
Host communication	Modbus TCP/IP - Optional Profinet DP - Optional Ethernet - Optional Profinet - Optional
Acceleration and deceleration time	5 s – 6000 s (related to load)
DI / DO	14 inputs / 22 outputs
Ambient temperature	-5 to +40°C , derating 1% per 1°C up to 45°C
Storage / transportation temperature	-40 – +70°C
Cooling	forced air cooling / water cooling
Humidity	<95%, no condensation
Altitude	<1,500m (1% derating each 100 meter above 1000 m)
Dust	Non-conductive, no causticity, <6.5 mg / dm3
Protection level	IP30
Cabinet colors	RAL 7 035 (other on request)

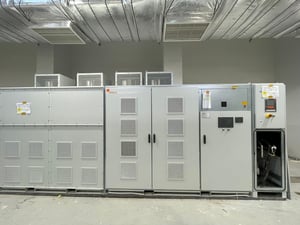

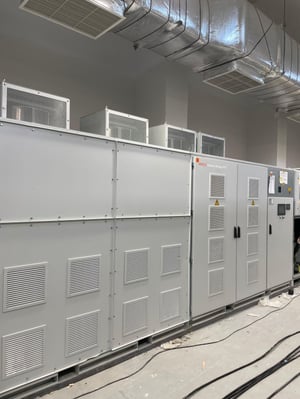

Enclosures

Air cooled compact cabinet Double-side service zone Designed to combine the smallest footprint layout with the full performance of a standard drive without any compromises on power or quality. An ideal solution for retrofit projects or any installation with space constraints.

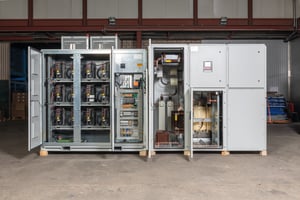

Air cooled standard cabinet Single- and Double-side service zone Classic Line up version with design optimization for an overall reduced switch gear width. Power cell cabinet with cell installations from the front and the backside of the cabinet. This switchgear version is a perfect fit for applications with multiple drive installations.
Multi drive system standard cabinets Single-side service zone only Distribution switchgear style with a single side service access design. This type of VFD is ideal for a wall mounted or back to back installation. It is often used in single installation sites or smaller rooms with a certain limitation of switchgear depth.
Water cooled cabinet Single-side service zone Water cooling provides uniform heat distribution that guarantees lower component temperatures and longer service life. The fully enclosed air-water heat exchange type enclosure provides insulation from outside temperatures and dust.
