Low Voltage Packaging Solutions

Our LV Packaging Solutions cabinets are specially developed to implement motor control for unique customer applications. Each cabinet is individually produced as a single unit or in small series, configured, and rigorously tested in Sendenhorst, Germany. Upon request, we can package and deliver these solutions worldwide.

The cabinets can be equipped with additional components such as circuit breakers, fuse load disconnectors, communication cards, temperature controllers, and more. The options presented here are just a small sample of the flexible AuCom solutions available. Contact us, and we will work with you to develop the ideal concept tailored precisely to your specifications and requirements.

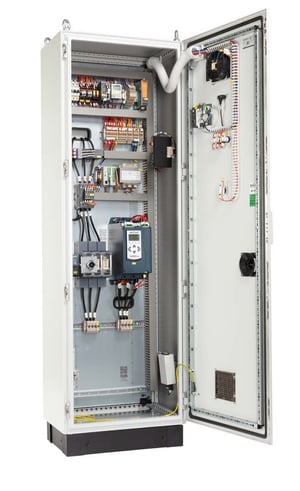

LV Packaging Soltuions Hero

Motor Control Systems

  • CSXI soft start with internal bypass
  • EMX4i/EMX4e soft start with internal/external bypass
  • Contactors for DOL-; Star/Delta-Start with motor protection relays
  • Variable Frequency Drive (different types)

Standards

  • Certified according to ISO 9001 and ISO 14001
  • High quality standard “Made in Germany”
  • Cabinets according to marine societies
  • Highly reputable products (well-known standard suppliers)
  • IP54 enclosure
  • Standard and heavy-duty ratings
  • Rittal cabinets
  • High short circuit capability

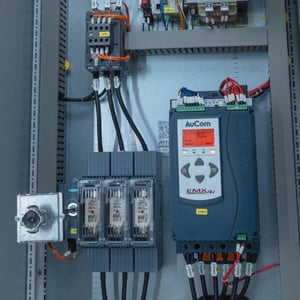

LV Packaging Solutions inkl

At a glance

  • Perfect match to the application
  • Motor control via:
    • DOL-start
    • Star- /Delta-Start
    • Soft Starter
    • VFD
  • Best price/performing ratio
  • Additional components to integrate:
    • Circuit Breakers
    • Semiconductor fuses
    • Disconnecting switch
    • Contactor for disconnecting,   forward/backward, etc.
    • Door mount keypad / HMI with protective cover
    • Communication cards for remote access and control
    • Control Power Transformer
    • Space heater control Terminal strip access and control for customer control logic

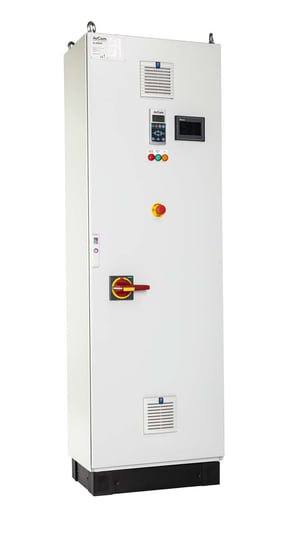

LV Packaging Solutions Hero 2
CSXi Series

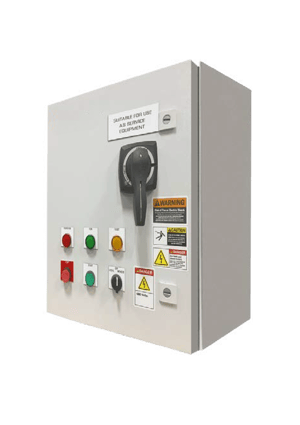

Pump Panel Starters

Standard Enclosed Soft Start Pump Panels

Standard features:

  • IP54 enclosure
  • CSXi solid state starter with built-in bypass
  • Circuit breaker with door operator (35 kAIC)
  • Control power transformer
  • Space heater with thermostat
  • Start/Stop Pushbutton, HOA, Power
    On/Run/Fault light
CSXi Series LV Packaging Pump Panels-01-1
EMX4i with EMX4i Technology

Standard and Heavy Duty Ratings

Prepackaged Starters with Integral Run Duty Bypass

Configure the EMX4i to Fit your Application

Stock units ship the same-day. To modify a starter, select a unit from the following  pages, other options as needed from the options section. We will modify the stock unit for next day shipment

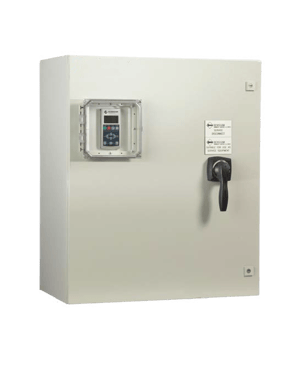

EMX4i LV Packaging Standard and Heavy Duty Ratings-01-1

EMX4i Configurable Solid State Starters Stocked As:

  • Combination starter with circuit breaker*
  • High fault rated (65 KAIC)
  • Rotary disconnect operator
  • EMX4i soft starter chassis
  • Run duty bypass
  • IP42, IP54 (IP65 enclosure
  • with option adders)
  • 400/690 V
  • Standard 230V control power transformer
  • Service entrance rated
  • Door mounted keypad with IP65 cover (option)
  • KP door mounted keypad
  • IP56 (included) 5 KAIC rated standard

EMX4i Features:

  • Current limit ramp
  • Soft brake
  • SCR Failure Power Through
  • Daily on/off scheduling
  • Full graphical LCD display
  • Real language feedback messages 8 languages: English, Chinese,German, Italian, French, Spanish, Brazilian Portuguese, Russian
  • Real time graphs of motor operating performance
  • Main menu and Quick Setup
  • Logs: 384 events
  • Easy and fast to operate interface
  • Quick start application setup for
    easy commissioning
  • Emergency Run (Fire Mode)
  • Built-in Simulation Mode
  • QR codes on display for fast and easy diagnostics
  • USB port for Parameter upload/download, firmware upgrades, diagnostic logs

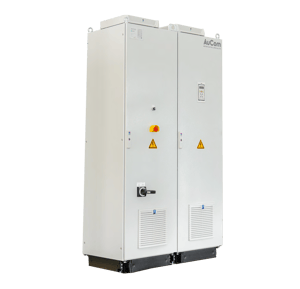

LV Drive Packages

  • 380 - 480V
  • 5.5 - 500kW
  • Ready to connect with input and output connection points for easy installation
  • LCD Display with keypad located on the door for quick and simple programming and monitoring of operational status
  • Seamless integration into existing emergency chain
LV-Drive-Cabinet-1
ORDERCODE
(LV-D-C-400-…)
DESCRIPTION AUCOM
QUICK & SAFE
AUCOM
QUICK & SAFE+
AUCOM
FULL CONTROL
AUCOM
FULL CONTROL+
Motor current Power Rating 380–480 V 3 phase
Current (max. cross section)
5,5–30 kW
≤ 61 A (35 mm²)
≤ 90 kW
≤ 169 A (185 mm²)
≤ 250 kW
≤ 481 A (Busbar)
≤ 500 kW
≤ 962 A (Busbar)
Cabinet Size (H x W x D in mm)
(incl. 100 mm base frame)1
1200 x 600 x 400 (wall mounting) 2100 x 800 x 600 2100 x (1400–2000) x 600 2100 x (2400–4000) x 800
AF / AC Cooling unit
Air flow (AF)
Air conditioner (AC)
AF AF / AC AF / AC AF / AC
30 / 54 / 55 / 56 Protection code 30 / 54 / 55 / 56 30 / 54 / 55 / 56 30 / 54 / 55 / 56 30 / 54 / 55
B / T Cable input2 Bottom / Top Bottom / Top Bottom / Top Bottom / Top
00 / CB / DS Circuit breaker (CB) Option Option - -
Disconnect switch with fuses and doorhandle (DS) - - Option Option
0 / 1 EMC filter C2 C2 C2 C2
00 / HF / LR Harmonic filter (HF) - - Option Option
Line reactor (LR) - Option Option Option
00 / LR / SF Load reactor (LR) - Option Option Option
Sinus filter (SF) - - Option Option
0 / 1 Internal control power transformer Option Option Option Option
00 / MB / BN / PB / PN Communication module Modbus RTU (MB)
BACnet (BN)
Modbus RTU (MB)
Profibus (PB)
Profinet (PN)
Modbus RTU (MB)
Profibus (PB)
Profinet (PN)
Modbus RTU (MB)
Profibus (PB)
Profinet (PN)
00 / 06 / 12 / 18 RTD module 0 / 6 inputs 0 / 6 / 12 / 18 inputs 0 / 6 / 12 / 18 inputs 0 / 6 / 12 / 18 inputs
0 / 1 Feeder for motor space heater Option Option Option Option
0 / 1 Powermeter Option Option Option Option
0 / 1 Analog speed potentiometer Option Option Option Option
0 / 1 2-channel safety relay Option Option Option Option
0 / 1 Cabinet light Option Option Option Option
0 / 1 Cabinet heater Option Option Option Option
0 / 1 Cabinet socket Option Option Option Option

1 Width may vary depending on options selected
2 IP56 cable input bottom only

Highlights

Powerful & Reliable
Smart does not have to mean complex. While the EMX4 offers more functionality than ever before, it has been designed to make your life easier.
Protection
The EMX4 Smart Card redefines the role of a soft starter. With the appropriate Smart Card installed the EMX4 is able to operate as an entire system controller.
Versatile
The AuCom Pocket Technician app puts the tools you need to troubleshoot issues with starting and starter operation in the palm of your hand.
phone-icon
Applications
The AuCom Pocket Technician app puts the tools you need to troubleshoot issues with starting and starter operation in the palm of your hand.

Features & Accessories

Motor Control

  • Dual motor set
  • Constant current and current
    ramp start
  • Current based torque control
  • TVR start
  • Kickstart
  • Coast to stop and TVR stop
  • Slip-ring motor control
  • Emergency run

Human Interface

  • Multi-language graphical display
  • Starter status LEDs
  • Date & time stamped event logging
  • Real time performance graph
  • Operational counters
  • User programmable monitoring screen
  • Fully customisable protections
  • Customisable I/O operation
  • Programmable start/stop
  • User programmable metering screen
  • Multi-level password protection
  • Plug-in control terminal blocks
  • Remote HMI

Advanced Diagnostics

  • Internal wave form oscilloscope data logging
  • Detailed event and trip logs
  • Simulation modes

Protection

  • Motor thermal model
  • Motor thermistor
  • Current imbalance
  • Under/Overcurrent
  • Under/over voltage
  • Phase sequence
  • Phase loss
  • Power loss
  • And more...

Input and Output Options

  • Remote control inputs
    (3 fixed, 2 programmable)
  • Relay outputs
    (3 fixed, 3 programmable)
  • Analog output
    (1 programmable)
  • Serial port (via comms module)

Accessories: Communication Options

  • Modbus RTU
  • Profibus
  • DeviceNet
  • Modbus TCP
  • Profinet
  • Ethernet/IP
  • USB
Show more

Specifications

General
Current Range 70 - 1700 A

Supply
Mains Voltage (L1, L2, L3)
   MVE-xxxx-V02 2.3 kV Phase-phase
   MVE-xxxx-V04 4.2 kV Phase-phase
  MVE-xxxx-V06 6.6 kV Phase-phase
  MVE-xxxx-V11 10/11 kV Phase-phase
  MVE-xxxx-V13 13.2-13.8 kV Phase-phase
Control Voltage (A1, A2, A3) 85 ~ 264 VAC or 90 ~ 350 VDC*
Rated Frequency 50/60 Hz
Rated lightning impulse withstand voltage (Up)
  2.3 - 6.6 kV
60 kV
  10/11 kV
75 kV
  13.2/13.8 kV
95 KV
Rated short-time withstand current (symmetrical RMS) (lk) 50 kA**

Short Circuit Capability
Current Range 24 A ~ 1250 A (nominal)
Motor connection In-line or inside delta
Bypass Integrated internal

ANSI Protection Codes
Code Description Built-in Protection
48 Maximum start time Excess start time
66 Too many starts Restart delay and dynamic thermal model
37 Undercurrent Undercurrent
51L Load Increase (alarm) High current frequency output
51R Overcurrent - jam Excess start time, electronic shearpin
50 Overcurrent - short  Shorted SCR, electronic shearpin
49/51 Thermal overload Thermal overload - dynamic model
46 Current imbalance Current imbalance
27 Undervoltage Undervoltage
59 Overvoltage Overvoltage
47 Phase loss Phase loss
47 Phase sequence Phase sequence
50G Ground fault Ground fault
85 Communications failure Communications failure
85 Internal failure Internal failure
94/95

Ext. fault 1/code-1

Auxiliary trip A

Ext. fault 1/code-2

Auxiliary trip B
23

Motor overtemperature

Thermistor protection*
49

Stator winding overtemperature

Thermistor protection*
32

Under power

Power Loss



Inputs on Controller
Start (C23, C24) 24 VDC, 8 mA approx
Stop (C31, C32) 24 VDC, 8 mA approx
Reset (C41, C42) 24 VDC, 8 mA approx
Input A (C53, C54) 24 VDC, 8 mA approx
Input B (C63, C64) 24 VDC, 8 mA approx
Motor thermistor (B4, B5) Trip point > 2.4 kΩ

Outputs
Rating of output relays on Controller 10 A @ 250 VAC resistive
6 A @ 250 VAC 15 p.f. 0.3
10 A @ 30 VDC resistive
Outputs
  Relay output A (41, 43, 44) Normally Open
  Output Relay  B (51, 52, 54)
 Changeover
  Output Relay C (61, 62, 64) Changeover
  Analog output (B10, B11)
0-20 mA or 4-20 mA

Environmental
Degree of Protection
  Power Assembly IP00
  Controller IP54 / NEM12
Operating Temperature
  Humidity
5% to 95% Relative Humidity
Storage Temperature -25 °C to +70 °C
  Humidity
5% to 95% Relative Humidity
Operating Altitude 1000 m ASL, higher with derating
Pollution Degree IP00
Vibration Designed to IEC 60068
Equipment Class (EMC)  Class A
EMC Emission IEC 60947-4-2
EMC Immunity  IEC 60947-4-2

Certification
CCC GB 14048.6
CE EN 60947-4-2
C-UL C22.2 No. 60947-4-2
UL 60947-4-2
Marine
  Lloyds Lloyds Marine No 1 Specification
  ABS Steel Vessel Rules 2010
RCM
 IEC 60947-4-2

Show more
