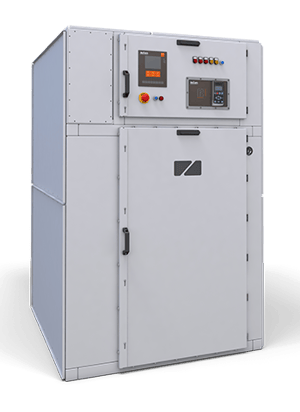

L-MVE Soft Starter
< 1700A
2.3 - 13.8kV
Playing it Safe
L-MVE Series Soft Starters are a robust and advanced solution designed specifically for medium voltage applications requiring high levels of safety and reliability. Equipped with comprehensive motor and load protection, the L-MVE starter offers a user-friendly graphical interface and advanced safety features, making it ideal for heavy-duty industrial and government use. Its design includes enhanced interlocks, Arc Fault protection (AFL31.5kA/1s), and short-circuit protection up to 40kA/1s, providing extensive motor control and safeguarding capabilities in a single, compact panel. Available in both single or lineup configurations, the L-Series is a well-rounded choice for complex motor control requirements
With models suitable for currents up to 1700A and voltages up to 13.8kV L-MVE starters have your motor control needs covered.

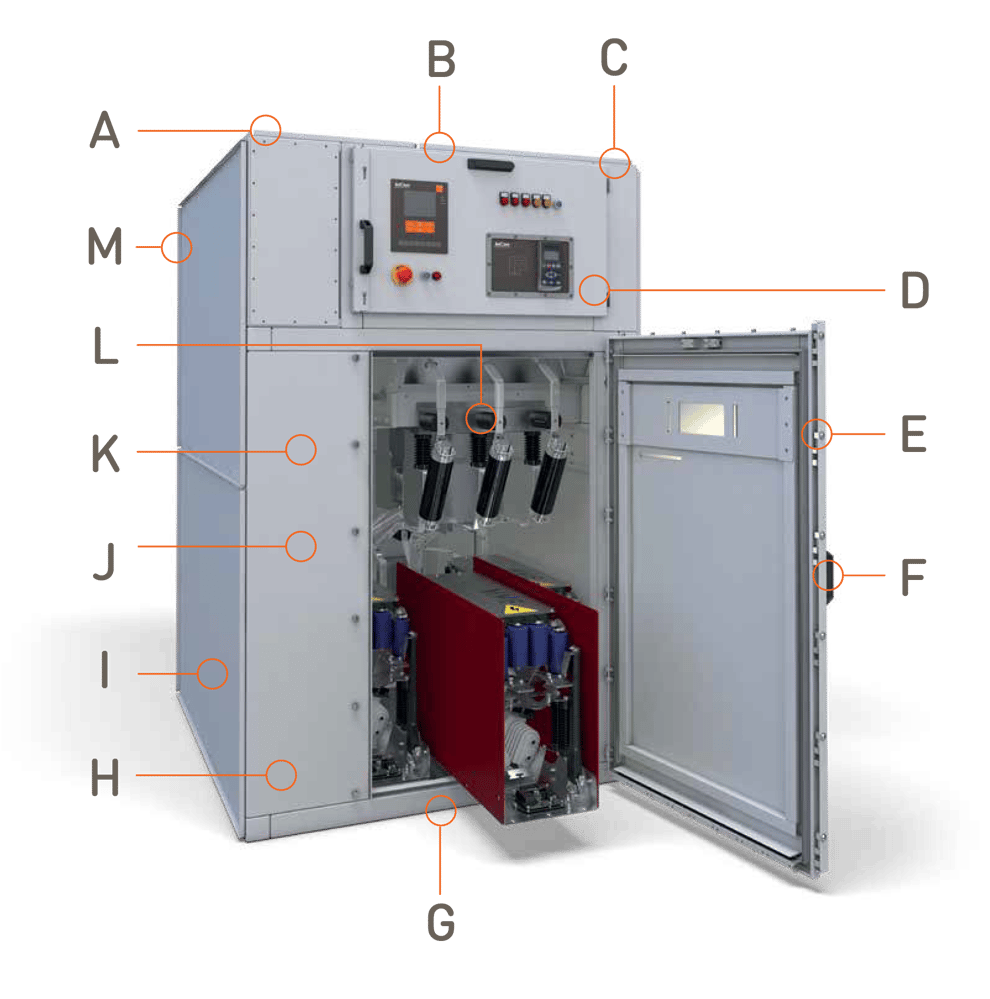

L-Series Panel Features
| A | 2200 mm height for easier transportation |
| B | Available in both stand-alone and line-up configuration |
| C | IEC type tested |
| D | Safe operation with separate galvanically isolated low voltage section via IBT technology |
| E | Robust hinges and handles for convenient and safe closure |
| F | Built-in locking on all compartment doors as standard |
| G | Optional internal power factor correction including capacitor, vacuum contactor, fuses and inrush current limiter |
| H | A range of switching options (vacuum contactor or vacuum circuit breaker) |
| I | Corrosion resistant hot-dip galvanised steel sheets |
| J | Front panel access with optional rear panel access available |
| K | Top or bottom cable input and control wiring |
| L | Maintenance friendly design |
| M | Disconnecting switch viewing window for safer de-energising (back of enclosure) |
MVE Soft Starter Features
Medium voltage installations are complex enough without making the starter hard to use as well. MVE is packed with features designed to make your life easier, including real-language feedback messages, so you don't have to look up codes to know what's happening.

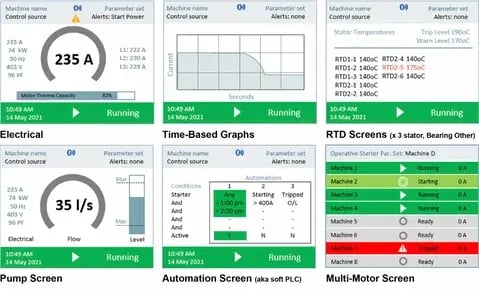

Built-in monitoring and indicators, and extensive on-board input and output functionality reduce the need for space and avoid the cost of auxiliary equipment, while simplifying installation. Real-time graphs of motor operating performance and current quickly and clearly illustrate exactly how your motor is performing. No fuss, no trouble - a smoother start in every sense.

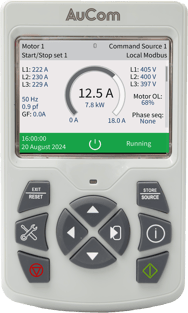

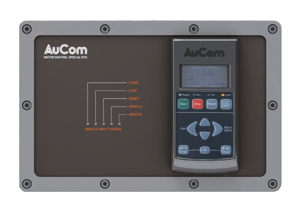

The MVE controller features simple, plain language feedback on the soft starter's operation and events - no need for trip code look-ups.
